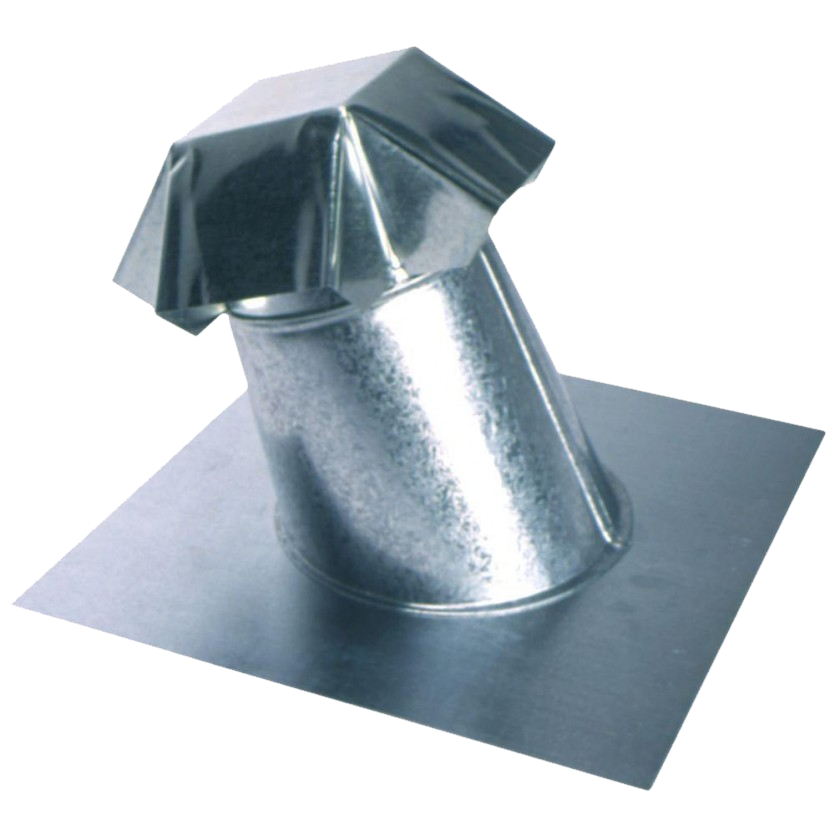

DESCRIPTION:A-Vent
APPLICATIONS:
Intended for use with certain process equipment & large oil or gas burning heating appliances
Approved for Natural Gas (NG), Propane (LP), Oil
Typical Usage: Category I Appliances Intended to Be used with Furnaces, HWT, Boilers, Process Equipment, Commercial Ovens
FEATURES AND BENEFITS
Diameter: 4" - 6", 8" - 36"
Warranty: 1 Year
PRODUCT DATA
ULC Listed
Maximum Temperature Rating: For continuous operation: 7600 c or 14000 F
Material: Outer and Inner Casing: 304 Stainless Steel
Outer Casing and Inner Liner Separated by 2" Mineral Wool Insulation
DESCRIPTION : B-Vent
APPLICATIONS:
Category 1 Gas Burning Appliances
Approved for Natural Gas (NG), Propane (LP)
Typical Usage: Intended to be used for
Furnaces, HWT, Boilers, Pool Heaters,
Unit Heaters, Gas Fireplaces,
Infrared Tube Heaters
FEATURES AND BENEFITS
Diameter: 3" - 36" (insulated: 4" - 14")
Minimum Clearance to Combustibles: 1"
UL/ULC screws are not required to be used in B-Vent manufactured by Don Park
because of Air Fast Inc's connection method. For Air Fast Company B-Vent manufactured after
March, 2007, screws are permitted to be installed at joints as an optional attachment
method but are not mandatory.
DESCRIPTION

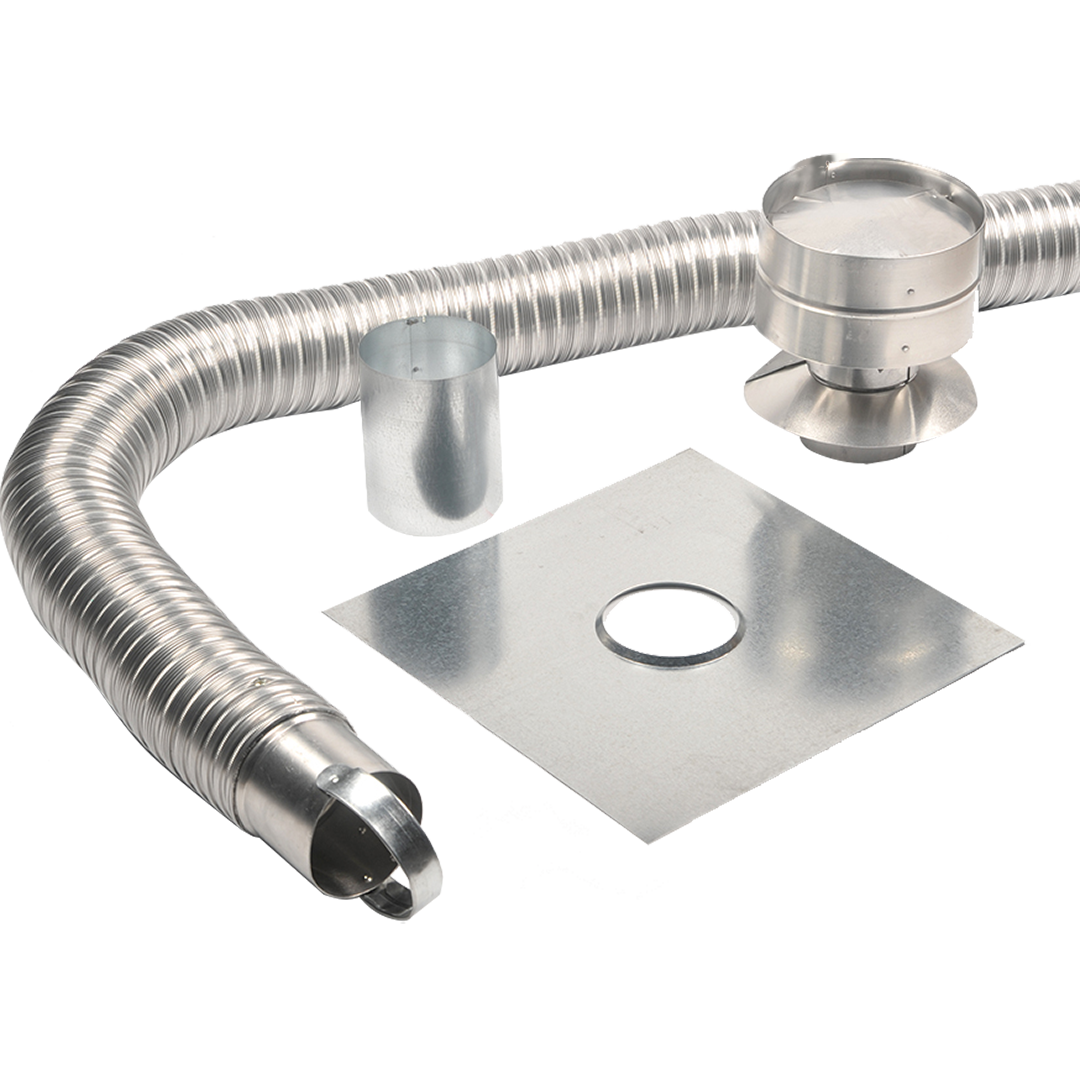

Aluminum Chimney Liner
APPLICATIONS
Category 1 Gas Burning Appliances
Relining of Masonry Chimney or
Factory Built Chimneys for NG or LP
Typical Usage Furnaces, HWT & Gas Inserts
FEATURES AND BENEFITS
Diameter: 3" - 8"
o Including 5.5"
Length: Up to 45'
Factory Installed Pull Through Connector
Ribbed Mortar Guard
Water Dam Built into Flashing
Superior Cap Design Includes Storm Collar & Connector
Optional Heavy Duty Connector - ALCLKxFA
